Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
-
Resaltar
ATEX Certificate Gas Injecting System
,Customizable Gas Injecting System
-
CondiciónNuevo
-
Industrias aplicablesPlanta de Fabricación
-
Peso (kg)300
-
Ubicación de la sala de exposiciónNinguno
-
inspección de salida por videoProveedor
-
informe de ensayo de la máquinaNo Disponible
-
Garantía de componentes principales1 año
-
Componentes básicosMotor, Bomba
-
TipoCompresor
-
Garantía1 año
-
Servicio postventa prestadoIngenieros disponibles para el servicio de máquinas en el extranjero
-
Resolución0.1 g
-
Voltaje380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modelo No.Sistema de carga de refrigerante CM8600 R32
-
Precisión± 0,5%
-
grado de vacío5 Pa a 10 Pa
-
velocidad de carga60~260g/s
-
AplicaciónAire acondicionado, dispensador de agua, congelador, refrigerador
-
PuertoShanghai Ningbo Tianjin Qingdao
-
Lugar de origenJiangsu, China
-
Nombre de la marcaCM
-
CertificaciónCE, ATEX
-
Número de modeloCM8600
-
Cantidad de orden mínima1 unidad
-
Precio$20,400.00/units 1-2 units
-
Detalles de empaquetadocaja de madera, paleta para la máquina de carga de refrigeración CM8600
-
Capacidad de la fuente50 unidades/unidades por mes
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |

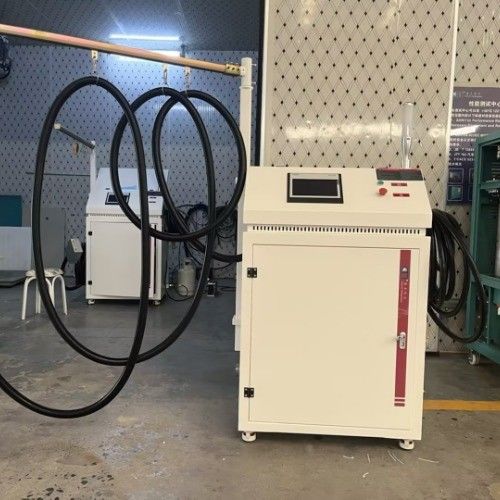

CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Key Features
- Adopt CNC technology allowing data processing capability with accurate and easy operation
- Charging/filling liquid gas R134a, R22, R407C, R410A etc. (for R600a, R290, R32 can be customized)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors provide precise data with resolution reaching 1~0.1g
- Wonfulay (our own brand) pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in the cylinder is low
- Adjustable vacuum time and inspection leak time according to requirements
- Wonfulay (our own brand) filling gun improves charging/filling speed
- Wonfulay (our own brand) high vacuum pump provides quick vacuum reaching 5~10Pa
- Includes vacuum, inspection leak, charging/filling, and refrigerant recovery functions
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move
Product Images
