CM8600 R32 Refrigerant Charging System for Air Conditioner Production
-
Resaltar
R32 refrigerant charging system
,air conditioner production charging station
,CM8600 refrigerant charging equipment
-
CondiciónNuevo
-
Industrias AplicablesPlanta de Fabricación
-
Peso (KG)300
-
Ubicación de la sala de exposiciónNinguno
-
inspección de salida por videoProporcionado
-
Informe de Prueba de MaquinariaNo Disponible
-
Garantía de componentes principales1 año
-
Componentes básicosMotor, Bomba
-
TipoCompresor
-
Garantización1 año
-
Servicio postventa prestadoIngenieros disponibles para el servicio de máquinas en el extranjero
-
Resolución0.1 g
-
Válvula de tensión380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modelo No.Sistema de carga de refrigerante CM8600 R32
-
Precisión± 0,5%
-
grado de vacío5 Pa a 10 Pa
-
velocidad de carga60~260g/s
-
AplicaciónAire acondicionado, dispensador de agua, congelador, refrigerador
-
PuertoShanghai Ningbo Tianjin Qingdao
-
Lugar de origenJiangsu, China
-
Nombre de la marcaCM
-
CertificaciónCE, ATEX
-
Número de modeloCM8600
-
Cantidad de orden mínima1 unidad
-
Precio$20,400.00/units 1-2 units
-
Detalles de empaquetadocaja de madera, paleta para la máquina de carga de refrigeración CM8600
-
Capacidad de la fuente50 unidades/unidades por mes
CM8600 R32 Refrigerant Charging System for Air Conditioner Production
Single System Auto Freon Gas Filling System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Description
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. and can be customized according to your special requirements.
Key Features
- Adopts CNC technology for accurate data processing and easy operation
- Charging/filling liquid gas (R134a, R22, R407C, R410A etc. Custom options available for R600a, R290, R32)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors with resolution of 1~0.1g
- Wonfulay Pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with rate of 60g~260g
- Automatic prompts when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum (5~10Pa)
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move and operate

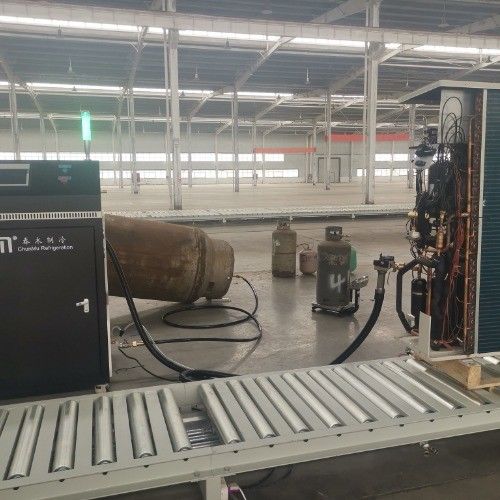

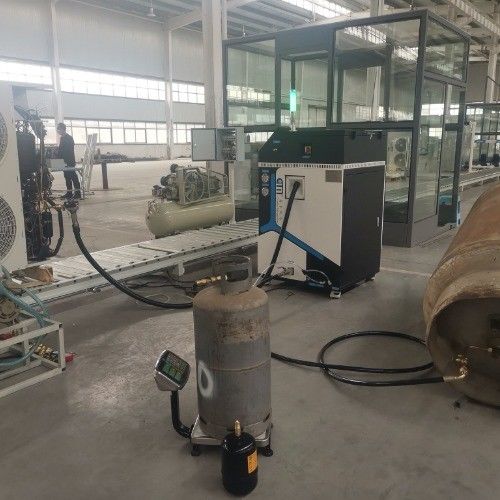

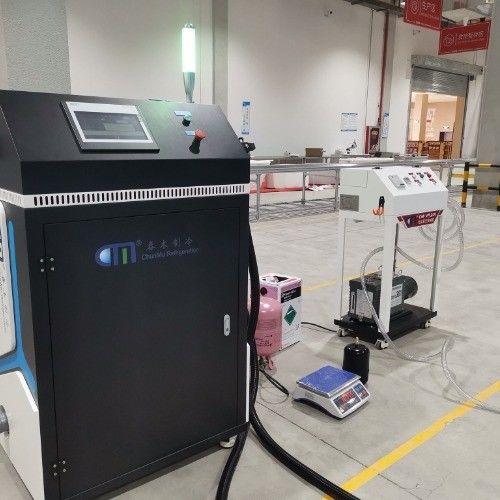

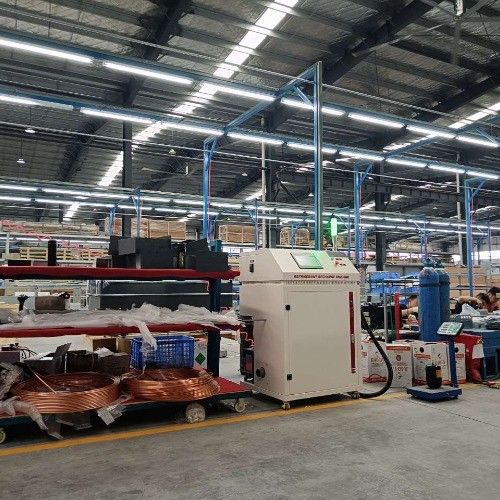

Product Images
