CM8600 Dual System Refrigerant Charging Machine 380V 50HZ
-
Resaltar
dual system refrigerant charging machine
,380V refrigerant charging station
,50HZ refrigerant charging equipment
-
CondiciónNuevo
-
Industrias AplicablesPlanta de Fabricación
-
Peso (KG)300
-
Ubicación de la sala de exposiciónNinguno
-
inspección de salida por videoProporcionado
-
Informe de Prueba de MaquinariaNo Disponible
-
Garantía de componentes principales1 año
-
Componentes básicosMotor, Bomba
-
TipoCompresor
-
Garantización1 año
-
Servicio postventa prestadoIngenieros disponibles para el servicio de máquinas en el extranjero
-
Resolución0.1 g
-
Válvula de tensión380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modelo No.Sistema de carga de refrigerante CM8600 R32
-
Precisión± 0,5%
-
grado de vacío5 Pa a 10 Pa
-
velocidad de carga60~260g/s
-
AplicaciónAire acondicionado, dispensador de agua, congelador, refrigerador
-
PuertoShanghai Ningbo Tianjin Qingdao
-
Lugar de origenJiangsu, China
-
Nombre de la marcaCM
-
CertificaciónCE, ATEX
-
Número de modeloCM8600
-
Cantidad de orden mínima1 unidad
-
Precio$20,400.00/units 1-2 units
-
Detalles de empaquetadocaja de madera, paleta para la máquina de carga de refrigeración CM8600
-
Capacidad de la fuente50 unidades/unidades por mes
CM8600 Dual System Refrigerant Charging Machine 380V 50HZ
Dual System CM8600 Gas Freon Charging Machine
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Description
The CM8600 refrigerant charging machine is specially designed for high-speed refrigerant charging at production lines. It features rapid charging capabilities, exceptional accuracy, and multiple functions. The machine is compatible with various refrigerants including CFC, HFC, and HC types, and can be customized to meet specific requirements.
Key Features
- CNC technology for precise data processing and user-friendly operation
- Compatible with multiple refrigerants (R134a, R22, R407C, R410A) with custom options available
- Siemens PLC and color touch screen control system
- High-accuracy flow sensors with resolution of 0.1g
- Wonfulay Pneumatic booster ensures stable pressure and large charging capacity
- Continuous charging capacity up to 99999g at rates of 60g~260g/s
- Automatic low refrigerant level alerts
- Adjustable vacuum time and leak inspection time
- Wonfulay filling gun enhances charging speed
- Wonfulay high vacuum pump achieves quick vacuum (5~10Pa)
- Multiple functions: vacuum, leak inspection, charging, and refrigerant recovery
- Repeat filling accuracy ≤ ±0.5%
- Portable design for easy movement and operation

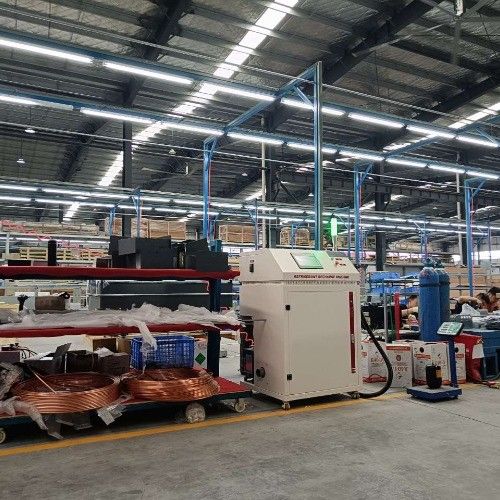

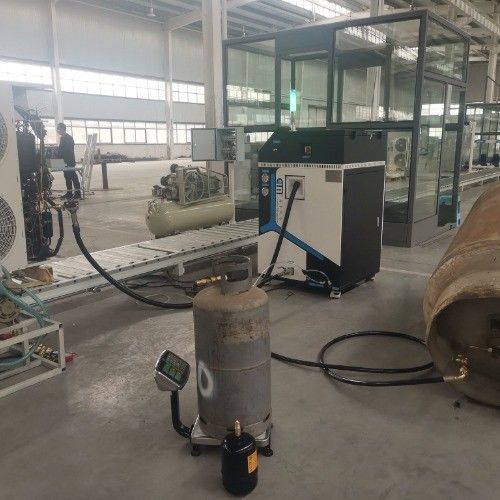

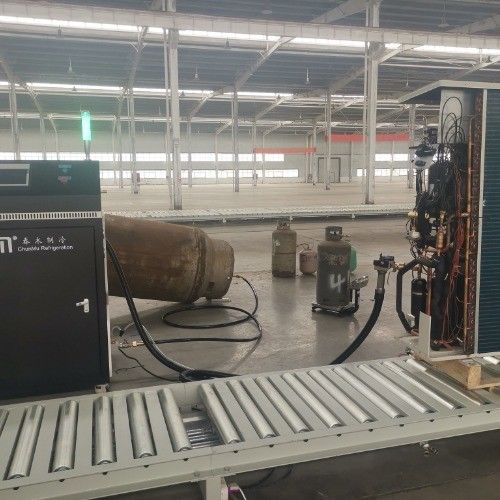

Product Images
Quality Assurance
This CM8600 refrigerant charging machine comes with a 1-year warranty on core components (motor and pump). Our after-sales service includes overseas engineer support for machinery maintenance and troubleshooting. Each unit undergoes video outgoing-inspection to ensure quality standards.
