Resaltar
AC refrigerant recharge machine
,gas filling system for AC
,refrigerant charging station with warranty
-
CondiciónNuevo
-
Industrias AplicablesPlanta de Fabricación
-
Peso (KG)300
-
Ubicación de la sala de exposiciónNinguno
-
inspección de salida por videoProporcionado
-
Informe de Prueba de MaquinariaNo Disponible
-
Garantía de componentes principales1 año
-
Componentes básicosMotor, Bomba
-
TipoCompresor
-
Garantización1 año
-
Servicio postventa prestadoIngenieros disponibles para el servicio de máquinas en el extranjero
-
Resolución0.1 g
-
Válvula de tensión380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modelo No.Sistema de carga de refrigerante CM8600 R32
-
Precisión± 0,5%
-
grado de vacío5 Pa a 10 Pa
-
velocidad de carga60~260g/s
-
AplicaciónAire acondicionado, dispensador de agua, congelador, refrigerador
-
PuertoShanghai Ningbo Tianjin Qingdao
-
Lugar de origenJiangsu, China
-
Nombre de la marcaCM
-
CertificaciónCE, ATEX
-
Número de modeloCM8600
-
Cantidad de orden mínima1 unidad
-
Precio$20,400.00/units 1-2 units
-
Detalles de empaquetadocaja de madera, paleta para la máquina de carga de refrigeración CM8600
-
Capacidad de la fuente50 unidades/unidades por mes
AC Recharge Machine Gas Filling System
AC Recharge Machine Gas Filling System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview
CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for high-speed refrigerant charging in production lines. It features exceptional charging speed, high accuracy, and multiple functions. Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement
Product Images

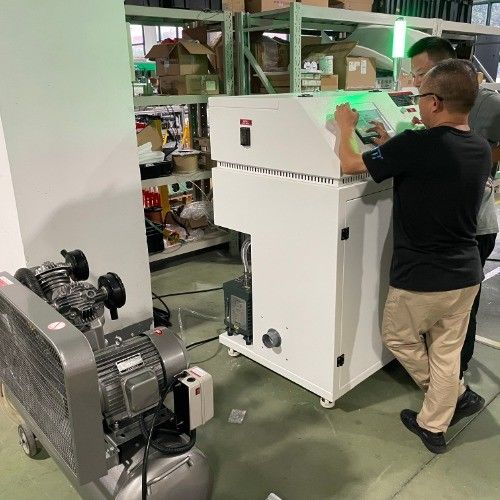

Front View
Control Panel
Side View
Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
